Monel Pipes

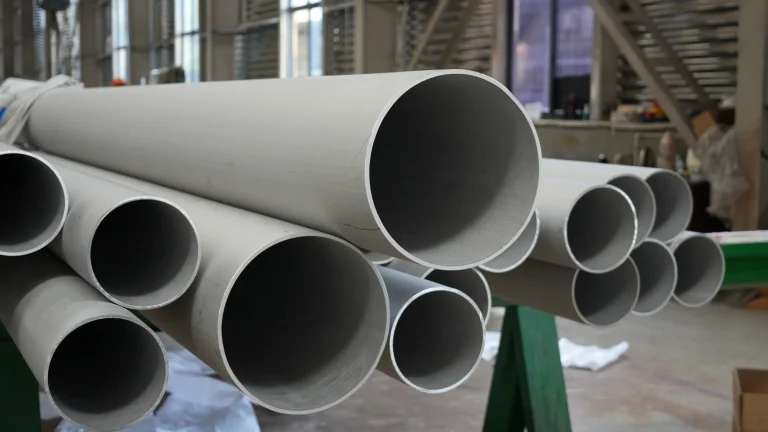

Seamless monel 400 Pipe
Seamless Monel 400 pipe is a high-performance nickel-copper alloy piping solution manufactured without any welded seams or joints.It is primarily used in extreme environments that require high pressure resistance and exceptional durability against corrosion,particularly in seawater and chemical processing.

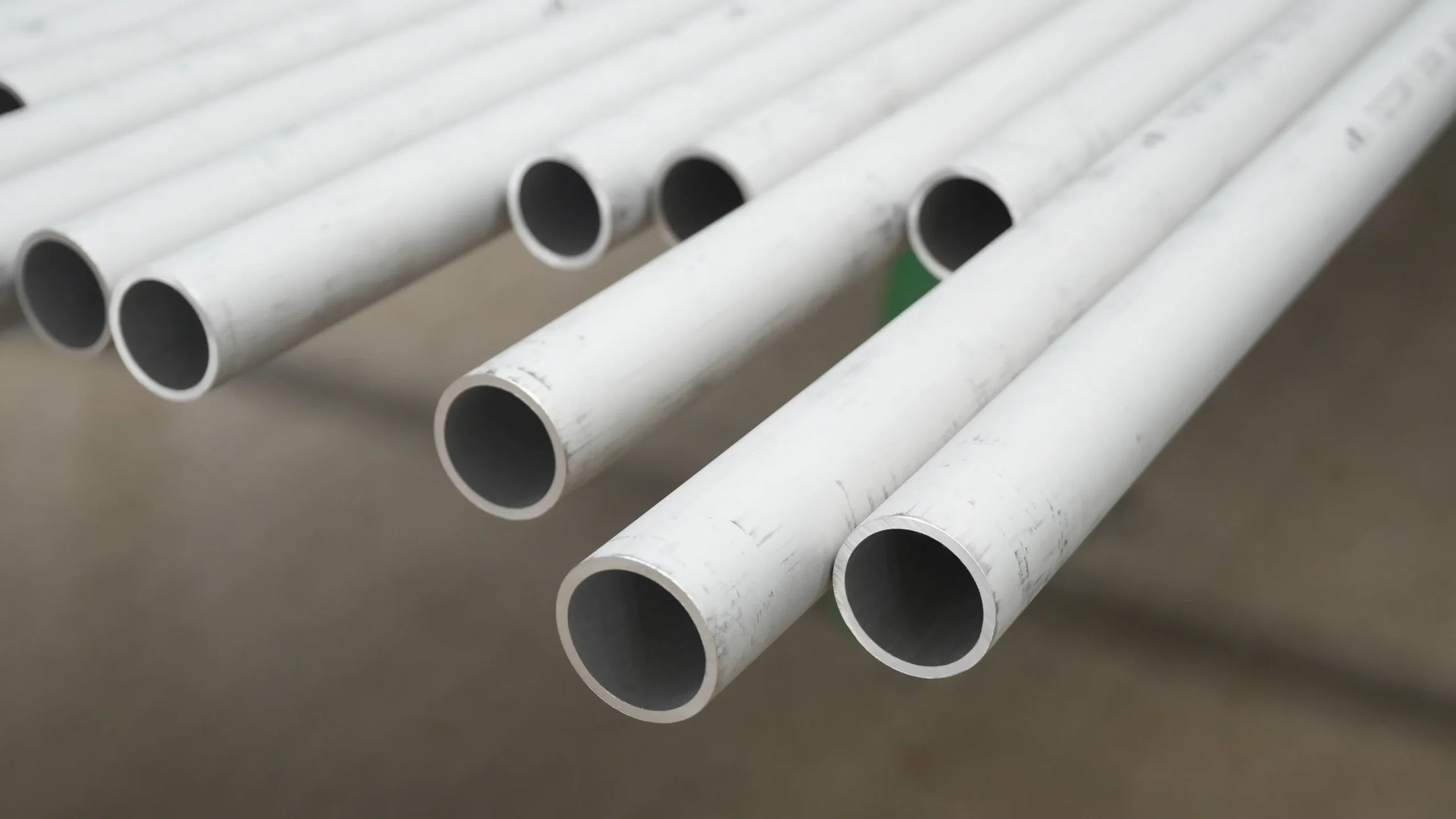

Welded monel 400 Pipe
Welded Monel 400 pipe is a high-strength, corrosion-resistant piping product made from a nickel-copper alloy.Unlike seamless pipes which are drawn from a single piece of metal,welded pipes are manufactured by rolling Monel 400 strip or plate into a tube and then joining the edges with a longitudinal weld.
What is Monel Pipes
Monel pipes are high-performance tubular products made from Monel,a group of nickel-copper alloys.
These pipes are renowned for their exceptional strength and resistance to corrosion,particularly in harsh environments like seawater and acidic chemical settings.
Composition:
Primarily 67% nickel and 28–34% copper,with small amounts of iron, manganese, and silicon.
Properties:
Offers superior resistance to acids (hydrofluoric,sulfuric) and fast-flowing seawater,while maintaining high strength from cryogenic to high temperatures.
Key Grades:
Monel 400, Monel K-500, and Monel R-405.
Major Applications:
Marine & Oil/Gas, Chemical Processing, Aerospace.
Why Choose Us
What are our inspection procedures for Monel pipes?
Monel pipes primarily consist of nickel and copper,and require specific inspection procedures to address their unique material properties,such as magnetic properties and susceptibility to hot cracking.
Contact Us To Get a Free quote
Applications of Monel Pipes
Marine Engineering and Shipbuilding
Monel is the “gold standard” for seawater exposure because it resists pitting and crevice corrosion even in fast-flowing water.
Oil and Gas
Exploration
Monel alloy tubing is essential for “sulfur-containing oil wells” that contain high concentrations of hydrogen sulfide and chlorides.
Chemical and Petrochemical Processing
One of the most notable characteristics of Monel alloy is its near-total resistance to corrosion by hydrofluoric acid (HF) at any concentration—up to its boiling point.
Power
Generation
Pipes in power plants must maintain their structural integrity under conditions of high-temperature steam and pressure fluctuations.
Aerospace
Industry
The aerospace industry values Monel alloy because it offers a high strength-to-weight ratio and retains its ductility even at extremely low temperatures.
Salt Production and Desalination
The extremely high chloride content in salt processing plants is highly corrosive to most metals,but Monel alloy performs exceptionally well in such salt-rich environments.
FAQs About Monel Pipes
The Primary Difference Lies In Strength And Hardening Methods:
Monel 400:
A solid-solution alloy that is strengthened by cold working.It offers excellent corrosion resistance across a wide temperature range and is the standard grade for marine and chemical piping.
Monel K-500:
Contains added aluminum and titanium.It is precipitation-hardened (age-hardened) to achieve roughly three times the yield strength of Monel 400,making it ideal for high-stress components like pump shafts and oil-well tools.
Monel is Highly Sensitive To Hot Cracking (Thermal Cracking) Due To Its Thermal Properties And Sensitivity To Impurities.
The Cause:
It has low thermal conductivity and a high coefficient of expansion.If trace elements like sulfur,phosphorus,or lead are present on the surface (from oil,grease,or paint),they form low-melting-point compounds that crack as the weld cools and shrinks.
The Fix:
Extreme cleanliness is mandatory.Surfaces must be degreased and cleaned with stainless steel brushes before welding,and interpass temperatures must be strictly controlled.
Monel is World-renowned For Its Resistance To Hydrofluoric Acid (HF).
Resistance:
It is one of the few materials that can handle HF in all concentrations up to the boiling point.It also performs exceptionally well in reducing acids like sulfuric and hydrochloric acids,provided there is no aeration (oxygen).
Avoid:
It should never be used with oxidizing acids like Nitric Acid or Chromic Acid.In these environments,the protective film on the metal is quickly destroyed,leading to rapid corrosion.
